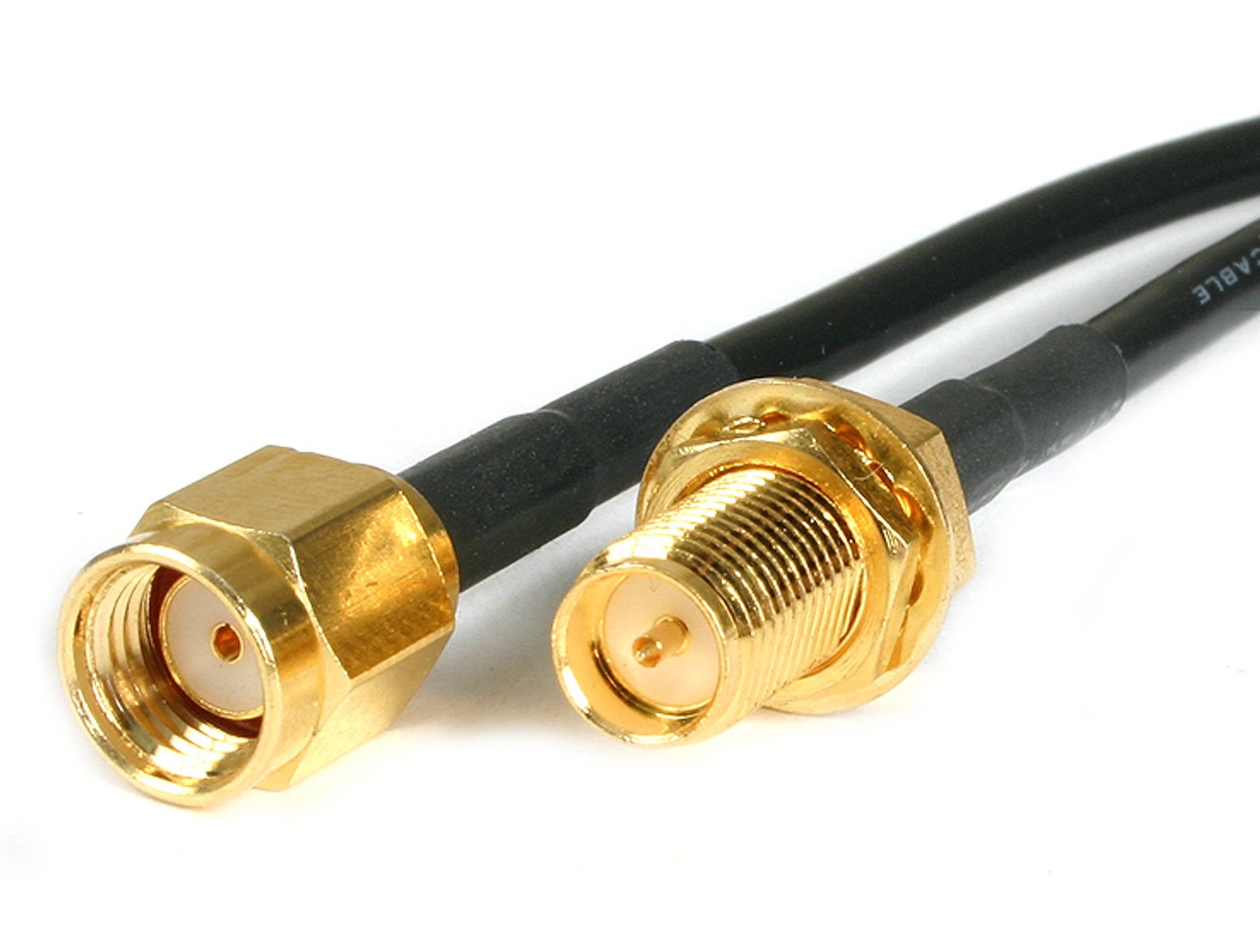

Intellinet Antenna Cable SMA plug to Reverse SMA Plug 3M Retail Box
Features
Specifications
- Connector 1: SMA plug (SMA male)
- Connector 2: Reverse SMA Plug (RP-SMA plug, Reverse SMA female)
- RG-58/U
- Impedance: 50 Ohms (+/- 3 Ohms)
- Center conductor: Strand bare copper wire, outside diameter (O.D.): 0.8 mm +/- 0.2 mm
- Insulation: Solid Polyethylene, outside diameter (O.D.): 2.9 mm +/- 0.1 mm
- Shield: Bare copper wire, outside diameter (O.D.): 3.12 mm +/- 0.008 mm
- Tellon jacket: PVC, outside diameter (O.D.): 5 mm +/- 0.01 mm
