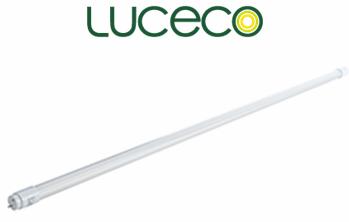

This 28 Watt T-series LED Bulb works with any T8 fluorescent light fixtures, can be configured for any T series fluorescent lamp fixture with G13 bi-pin tombstones or sockets, and requires no ballast for operation. To increase safety during installation and routine maintenance, these lamps are wired for single sided power with internal integrated LED driver housed within the tube. Internally, you simply bring the black wire to one pin and the white wire to the other. The composite/thermoplastic lens diffuses the light and makes this bulb ideal for food safe environments as there is no glass. The aluminum housing serves as a heat sink and provides rigidity and strength for this LED bulb.
In fluorescent light fixtures with electronic ballasts, the operator needs to bypass the ballast and wire the power directly to one end of the LED tube (black wire to one pin and white wire to the other). Thus, this is an ideal upgrade for 4 foot fixtures with failed ballasts.
• Long life: 30,000 hours reducing maintenance costs
• 50% energy saving against fluorescent for similar lux levels
• Composite / Thermoplastic construction
• Integrated Constant Current driver
• Retrofit with most T8 luminaires (non-dimming)
• Eco-friendly: mercury free
• Shorted end, supplied with dummy replacement starter
