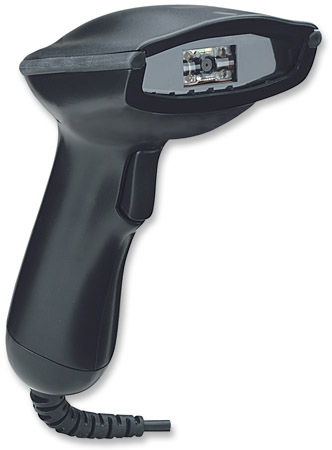

Product Overview
the Manhattan 2D Barcode Scanner delivers high-quality scanning for a wide range of data collection functions to help improve routine transactions, automate paper-based processes and increase productivity. The 2D scan engine offers speed, accuracy and greater tolerances for reliable service reading popular 1D and 2D barcodes including UPC/EAN, UCC/EAN128, Data Matrix, PDF 417, Maxicode and more.
•Keyboard Wedge Decoder displays data as if directly entered from keyboard
Specifications
•Supports 1D and 2D barcodes
•Light source: red laser 650 nm
•Scanner range: 430 mm
•Resolution: 752 horizontal x 480 vertical pixels, 256 gray levels
•Reading indicator: tone and LED
•Ambient light: 100,000 lux maximum (sunlight)
•Scan rate: 200 scans/second auto-adaptive in linear mode; 56 images/second auto-adaptive in area mode
•Interface: USB
•Switch: trigger
Code Support
•1D: UPC/EAN, UCC/EAN128, ISBN, ISBT, Code 11, Code 39, Code 93/93i, Code 128, Interleaved, Matrix, Industrial, Standard 2 of 5, Codabar, MSI, Plessey, Telepen, Postal codes, GS1 DataBar
•2D: Data Matrix, PDF 417, Micro PDF 417, Maxicode, QR code, Aztec, EAN.UCC composite
Physical
•Dimensions: 19.3 x 9 x 7.2 cm (7.5 x 3.5 x 2.8 in.)
•Weight: 135 g (4.76 oz.)
•Cable length: 1.5 m (5 ft.)
•Operating temperature: 0 – 50°C
•Storage temperature: -20 – 70°C
•Relative humidity: 20 – 95% (non-condensing)
•Housing: ABS
Electrical
•Voltage: DC +5 V +/- 5%
•Power consumption: 435 mA (in operation)
Package Contents
•2D Barcode Scanner
•User manual
