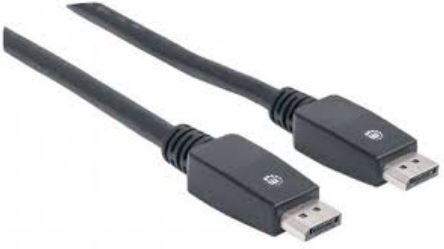

Manhattan DisplayPort Cable

Availability:

28 in stock


Manhattan DisplayPort Cable, DisplayPort Male / DisplayPort Male, 7.5 m, Black, Retail Box, Limited Lifetime Warranty

R438

28 in stock

Compare

Manhattan DisplayPort Cable, DisplayPort Male / DisplayPort Male, 7.5 m, Black, Retail Box, Limited Lifetime Warranty.

Product Overview:
Manhattan DisplayPort Cables deliver both high-definition digital audio and video signals between desktop or notebook computers and an output device. The 20-pin connector is small and compact but offers 10.8 Gbps bandwidth, Deep Color and 24-bit, 8-channel uncompressed audio capability. It’s ideal for use with DisplayPort-equipped computers, flat-panel displays, slim-profile devices and many consumer electronics including Blu-ray players and game consoles. Full foil and braided shielding, molded boots with strain relief, protective PVC jackets and gold-plated connections ensure that Manhattan DisplayPort Cables provide maximum conductivity and clear, crisp signal transmissions with reduced EMI interference and distortion.


Features:
• DisplayPort 20-pin male to DisplayPort 20-pin male with latching connections and strain relief boots
• Delivers high-bandwidth, bi-directional, 10.8 Gbps, digital audio/visual signals from source to display — up to 4Kx2K@60Hz
• 4K, UHD resolution supports video resolution four times 1080p; up to 1080p resolution in 3D and Deep Color
• Dolby and DTS-HD 2/5.1/7.1/8 uncompressed surround sound audio pass-through
• Fully shielded to reduce EMI and other interference sources
• Supports the HDCP and DPCP, content protection standards

Specifications
• Product Code: 354127
• Description: Manhattan DisplayPort Cable, DisplayPort Male

Standards and Certifications
• UL 20276
• DisplayPort 1.1
• ISO 9002

General
• Bandwidth: 10.8 Gbps at 600 MHz
• Meets or exceeds existing DisplayPort standards
• Length: 7.5 m (25 ft.)
Connectors
• DisplayPort 20-pin male with latches (2)
• Nickel plated
• Gold-plated contacts
• ABS boots, built-in PVC strain relief

Cable
• 26 AWG
• Shielding: aluminum and Mylar braid
• Withstanding voltage: 300 VDC
• Insulation resistance: 5 MΩ
• Contact resistance: 10 Ohms
• Current rating: 0.5 A DC
• Conductive resistance: 5 Ohms
• Thermal plastic casing

Operating Environment
• Operation Temperature: 0 – 50°C (32 – 122°F)
• Storage Temperature: -25 – 85°C (-13 – 185°F)
• Humidity (noncondensing): 0 – 96%

Package Contents
• DisplayPort Monitor Cable
