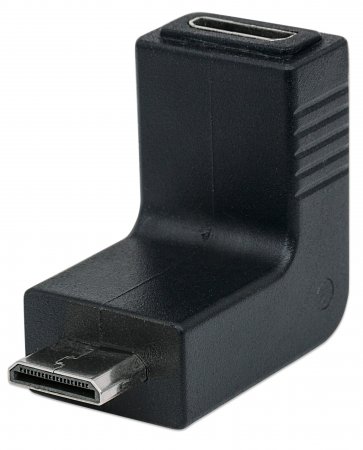

Product Overview
The Manhattan HDMI Adapter is ideal for connecting HDMI Mini cables to HDMI Mini ports in difficult-to-reach locations with traditional straight cables. Its small size allows for easy storing and carrying, and its convenient 90° angle allows for easy connections in even the most difficult locations. This HDMI Adapter allows 4K resolution and a bandwidth of 10.2 Gbps at 340 MHz
•Converts a straight HDMI Mini connection to 90°, allowing easy connections in difficult locations
•High-definition audio/video signal supports 4K resolution
•Gold-plated contacts for best performance
•Intended for use with Manhattan HDMI cables
Specifications
•Bandwidth: 10.2 Gbps
•340 MHz
•Meets or exceeds existing HDMI standards
•Length: 3 cm (1.2 in.)
Connectors
•HDMI Mini C female, 19-pin gold-plated contacts
•HDMI Mini C male, 19-pin gold-plated contacts
Electrical
•Current rating: 0.5 ADC
•Withstanding voltage: 300 VDC
•Insulation resistance: 5 MΩ
•Conductive resistance: 2 Ω
General
•Length (overall): 29.5 x 37.1 x 18 mm (1.16 x 1.46 x 0.71 in.)
•Weight: 10 g (0.35 oz.)
•Molded PVC
Package Contents
•HDMI Adapter, Mini C to Mini C
