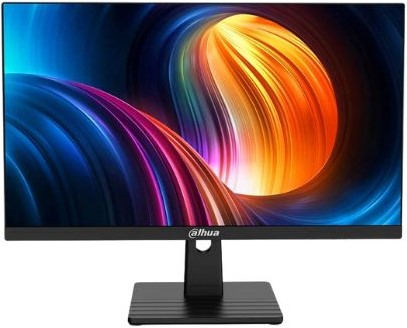

Dahua 25″ FHD 144HZ Monitor – The 1920×1080 resolution produces clearer and more vivid pictures, IPS panel for wide viewing angles with 3-sided micro edge frame design, Wide color gamut, 85% NTSC, It meets the designer’s demand of image texture, 178°H/178°V extra-wide viewing angle for overall viewing performance.
Product Overview
The Dahua 25″ FHD Commercial Monitor features a 144Hz refresh rate and 1ms response time for ultra-smooth, blur-free visuals, ideal for fast-paced applications. Its IPS panel delivers accurate colors with wide 178° viewing angles and 85% NTSC color gamut, meeting professional image quality demands. Equipped with low blue light technology and versatile connectivity, this monitor ensures comfortable, reliable performance in commercial environments.
Features
•Control: Five-button control mode
•Status Indicator: Yes
•Inclined Angle: -5° ± 2° / 20° ± 2° tilt
•Low Blue Light Technology: Yes, for comfortable viewing
•Wide Color Gamut: Meets designer demands for image texture and color accuracy
Specifications
•Product Code: DHI-LM25-B211B
•Description: Dahua 25″ FHD IPS Monitor
•Screen Size: 25 inches
•Panel Type: IPS (In-Plane Switching)
•Backlight: Edge LED (ELED)
•Resolution: 1920 × 1080 (Full HD)
•Aspect Ratio: 16:9
•Refresh Rate: 144Hz
•Response Time: 1ms (MPRT)
•Brightness: 300 cd/m² (typical)
•Contrast Ratio: 1500:1
•Color Depth: 16.7 million colors
•Color Gamut: 85% NTSC (typical)
•Viewing Angles: 178° horizontal / 178° vertical
•Pixel Pitch: 0.2832 mm × 0.2802 mm
•Pixels Per Inch (PPI): 89.91
•Screen-to-Body Ratio: 90%
•Surface Treatment: Haze 25%, 3H hardness
•Lifespan: 30,000 hours
Input Ports
•1 × DisplayPort 1.4 (supports 1920 × 1080 @ 120Hz)
•1 × HDMI 2.0 (supports 1920 × 1080 @ 120Hz)
•Output Ports: 1 × Audio Out Port
•Power Supply: 12 VDC, 2.5 A (external adapter)
Power Consumption:
•Basic: 18 W
•Typical: 22 W
•Maximum: 32 W
•Standby Power Consumption: <0.5 W
•Dimensions (W × H × D): 557.7 mm × 330.6 mm × 58.1 mm (21.96″ × 13.02″ × 2.29″) without wall mount
•Package Size: 620 mm × 431 mm × 134 mm (24.41″ × 16.97″ × 5.28″)
•Net Weight: 2.9 kg (6.39 lbs)
•Gross Weight: 3.9 kg (8.60 lbs)
•Frame Width: Top/Left/Right: 2.1 mm; Bottom: 19.6 mm
•Casing Color: Black
•Wall Mount: VESA 100 mm × 100 mm
