The TAPO-C220 Pan/Tilt Wi-Fi Camera features a 1/3” Progressive Scan CMOS Starlight sensor and a 4mm F2.0 lens, offering 2560×1440 resolution with a wide 88° diagonal field of view and 340° pan plus 69° tilt coverage. It supports advanced AI detections, complemented by two-way audio, a powerful 99dB siren, and night vision up to 30 ft. Security is robust with 128-bit AES encryption, Wi-Fi connectivity, and local microSD storage up to 512GB for seamless smart home surveillance.
Product Overview

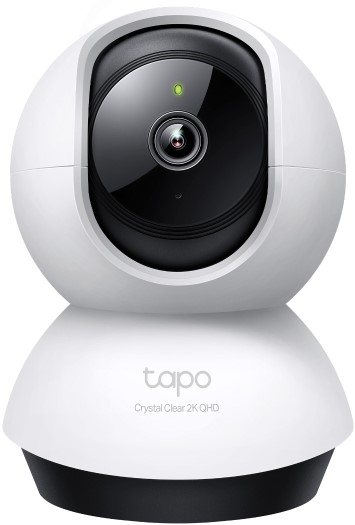

The Tapo C220 is a compact home security Wi-Fi camera featuring a 1/3” Progressive Scan CMOS Starlight sensor that delivers clear 2.5MP resolution (2560 × 1440 px) video at up to 30 fps with H.264 compression. It offers expansive coverage with a 4 mm lens, 88° diagonal field of view, and a 340° pan plus 69° tilt mechanical range for flexible monitoring. Enhanced night vision up to 12 meters, two-way audio with noise cancellation, AI-driven motion and activity detection, and local microSD storage up to 512GB make it a robust choice for smart home surveillance.
Features
•Complete Privacy: Maintain your privacy with the lens hidden inside the housing, unable to see out during privacy mode.
•4MP, Starlight Sensor: Captures high-quality images with vivid colors even in low-light conditions.
•Smart Detection and Notifications: Receive notifications based on the intelligent algorithms that understand people’s movement, a baby crying or the actions of your pet.
•Sound and Light Alarm： Trigger light and sounds as an alarm when motion is detected.
•Two-Way Audio： Communicate in real time through a built-in microphone and speaker.
•Voice Control： Works with Amazon Alexa or Google Assistant for hands-free interaction.
Specifications
•Product Code: TAPO-C220
•Description: Pan/Tilt Wi-Fi Camera
•Image Sensor: 1/3” Progressive Scan CMOS Starlight Sensor
Lens
•Focal Length: 4 mm
•Aperture: F2.0
•Field of View: 88° (Diagonal), 75°(Horizontal), 41°(Vertical)
•Motion Range: Pan Mechanical Range: 340° (360° Pan Coverage)
•Tilt Mechanical Range: 69°
•Night Vision: 850 nm IR LED (30 ft / 9 m)
Interface & Button
•1× RESET Button
•1× MicroSD Card Slot (Up to 512GB)
•Maximum Resolution: 2560 × 1440 px
•Frame Rate: 15/20/25/30 fps (Default 15fps)
•Video Compression: H.264
•Live View: Yes
•Image Enhancement: 3D DNR, BLC
•Audio Input & Output: Built-in Microphone and Speaker
•Audio Communication: Two-Way Audio with Noise Cancellation
•Siren Volume: 99dB (Level measured at 4-inch/10-cm distance)
AI Detection
•Motion Detection
•Person Detection
•Line-Crossing Detection
•Tamper Detection
•BabyCry Detection
•Vehicle Detection
•Pet Detection
•Meow Detection
•Bark Detection
•Glass-Breaking Detection
•Activity Zones: Yes
•Output Notification: System Notification, System Notification with Snapshot (Tapo Care Services)
•Network Connectivity: Connect via Wi-Fi
•Wireless Connectivity: IEEE 802.11b/g/n/ax, 2.4 GHz Wi-Fi
•RTSP: Yes
•ONVIF: Yes
Security
•On-Device Machine Learning
•128-bit AES Encryption with SSL/TLS
•WPA/WPA2-PSK
•Power Source: 9V DC Power Adapter
•Input Voltage: 100-240 V, 50/60 Hz
•Output Voltage: 9V, 0.6 A (DC Power)
