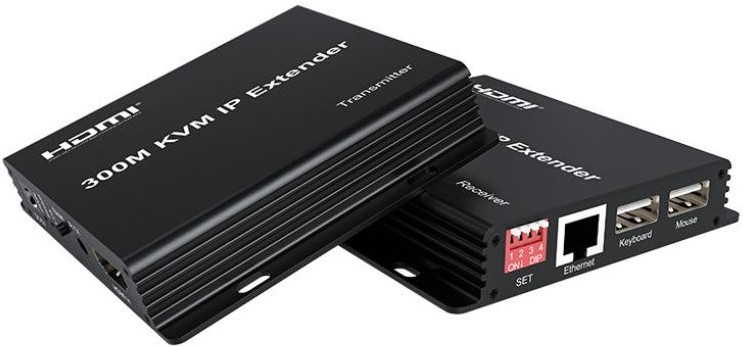

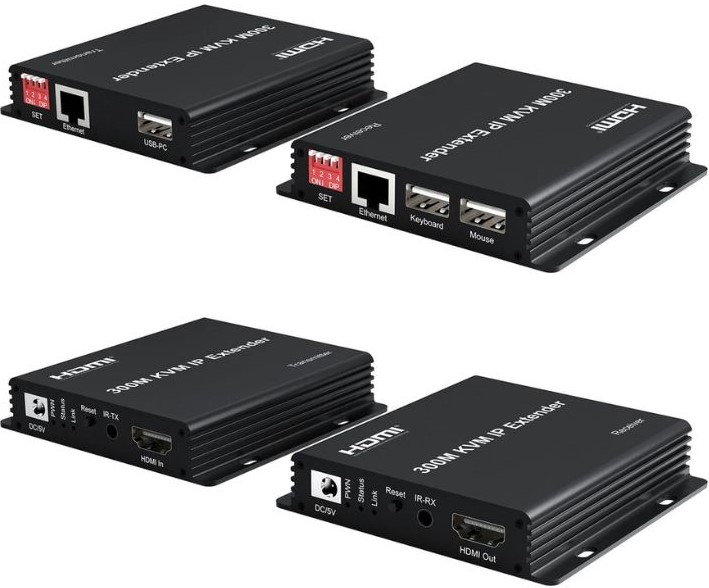

UniQue HDMI KVM IP Extender – Transmitter And Receiver, 300M HDMI IP Extender, 1080P Resolutions, 48KHzAudio Rate, Uses CAT5e/6 Cable To Transmit HD Display From The Source, TCP/IP Protocol, Support Point-to-Point Mode, Point-to-Multipoint Mode, Multipoint-to-Multipoint Mode, And Cascade Mode, 802.3 Ethernet Standard, IR Remote Control, Support USB Mouse, And Keyboard Extension, Plug And Play, No Additional Software Needed, Retail Box, 3 Months Warranty.
Product Overview
The 300M HDMI IP Extender transmits high-resolution HDMI audio and video up to 300 meters over a single CAT5e/6 cable using TCP/IP standards. It supports versatile connection modes including point-to-point, point-to-multipoint, and cascade, plus USB keyboard and mouse extension for KVM applications. Ideal for data centers, surveillance, education, and multimedia setups, it features plug-and-play hardware design with HDCP 1.4 and IR remote support.
Features
•Support HDCP1.4.
•Decoding Mode MJPEG.
•Support point-to-point mode, one point-to-multi point mode and cascade connection mode.
•802.3 Ethernet standard.
•Support IR remote control.
•Support USB mouse and keyboard extension.
•The design of pure hardware, plug and play, no need for additional software.
#Note:
Qualified cat5e/6 cables are needed
•Pls uses qualified cat5e/6 cables to pair the TX and RX. A qualified network cable shall be of copper conductor.
•The transmission distance is subjects to that of the cables connected.
High-performance Gigabit switch
•To provide enough bandwidth for the data transmission and stable performance, high-performance Gigabit switch
•is required when using one to many and multi-point to multi-point applications.
Specifications
•Product Code: UQ-KVMEXTHDMI-300M
•Description: UniQue HDMI KVM IP Extender
•Up To 300M Distance Transmission
•Resolutions: 480P/720P/1080P
•Audio Sample Rate: 32kHz,44.1kHz and 48kHz
•Power Adapter Format
•Input: AC (50HZ, 60HZ) 100V-240V
•output: DC5V/1A
•Max working current: TX 450mA
•Max working current: RX 450mA
•Size(L-W-H)approx.: 90*91*19mm
•Weight: approx.: 121g x 2
•Operating Temperature/Humidity: 0℃-45℃/10%-80%RH(no condensation)
•Storage Temperature/Humidity: -10℃-70℃/5%-90%RH(no condensation)
